CCL-3.5" | Custom Cross Lug Hydraulic Cylinder | 3000PSI | OEM Ready

CCL-3.5" | Custom Cross Lug Hydraulic Cylinder | 3000PSI | OEM Ready

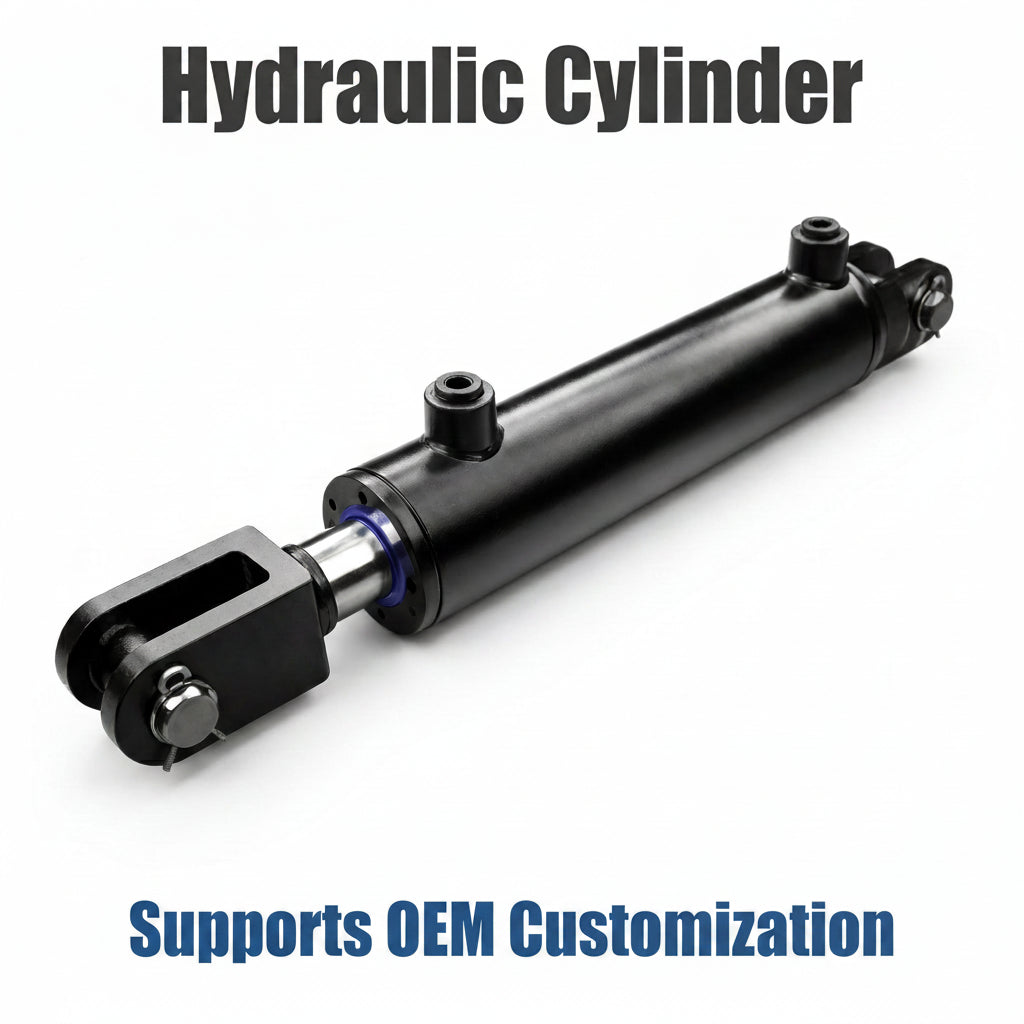

The CCL-3.5" belongs to the CCL — Custom Cross Lug series: a welded-body, double-acting hydraulic cylinder with a 3.5-inch (88.9 mm) bore, rated at 3,000 PSI (207 bar).

CCL = Custom Cross Lug. Mounting design:

• Rear (cap end): Cross lug — symmetrical dual-lug brackets welded to the cap end in a cross pattern, fixed high-strength mount with excellent side-load and torque resistance.
• Front (rod end): Double-clevis fork — bifurcated yoke, two-ear pivot pin connection.

Technical Specifications

• Series: CCL — Custom Cross Lug
• Bore Diameter: 3.5 in (88.9 mm)
• Working Pressure: 3,000 PSI (207 bar)
• Action: Double-acting
• Body: Welded construction
• Rear Connection: Cross lug (fixed symmetrical dual-lug mount)
• Front Connection: Double-clevis fork on piston rod
• Standard Strokes: 4", 6", 8", 10", 12", 14", 16", 18", 20", 24", 28", 30", 32", 34", 36"
• Model Numbers: CCL-3504 | CCL-3506 | CCL-3508 | CCL-3510 | CCL-3512 | CCL-3514 | CCL-3516 | CCL-3518 | CCL-3520 | CCL-3524 | CCL-3528 | CCL-3530 | CCL-3532 | CCL-3534 | CCL-3536
• Origin: China | HS Code: 841221

CCL Series — Full Bore Range

• CCL-1.5": 38.1 mm | CCL-2": 50.8 mm | CCL-2.5": 63.5 mm | CCL-3": 76.2 mm
• CCL-3.5": 88.9 mm — 15 standard strokes | CCL-4": 101.6 mm | CCL-5": 127 mm

Applications

• Heavy-duty construction machinery and excavator attachments
• Mining equipment and heavy industrial machinery
• Large agricultural loaders and implements
• Industrial presses and high-force clamping systems
• Custom OEM hydraulic systems

FAQ

Q: What does CCL stand for?
A: CCL = Custom Cross Lug. Welded body with symmetrical cross-lug fixed mount at cap end and double-clevis fork at rod end.

Q: Is it double-acting?
A: Yes. All CCL cylinders are double-acting.

Q: How many standard strokes are available?
A: 15 standard strokes from 4" to 36".

Q: What are the shipping terms?
A: FOB. Shipping costs, duties, and clearance fees are the buyer's responsibility.

Why Choose CCL-3.5" for OEM?

• Cross lug rear mount — fixed, high-strength, excellent side-load resistance
• Double-clevis fork front — stable two-surface pivot
• Welded body — compact, 3,000 PSI rated, double-acting
• 15 standard strokes from 4" to 36"
• Full OEM/ODM support | Volume pricing available

Manufactured by Customized Hydraulic Co., Ltd — CHC/Custom hydraulic cylinder OEM specialists serving the US, Canada, UK, and EU markets.

📋 Need a custom bore, stroke, or mounting? Submit a Quote Request →

📄 Product Spec Sheet: Coming soon — contact us for full technical documentation.

OEM & Bulk Order Information

• Quality Certification: ISO 9001 Certified — CUSTOM Hydraulic Machinery Co., Ltd (Wuxi, China)
• Manufacturer: CUSTOM Hydraulic Machinery Co., Ltd (Fuxin, China)
• MOQ: 1 unit (sample order) | 10 units minimum per bore size (bulk)
• Lead Time: 7–15 business days (standard) | Rush orders available upon request
• Custom Options: Bore diameter, stroke length, port size, rod diameter & mounting style — all customizable for OEM requirements
• OEM/ODM: Private label & custom branding available
• Shipping Terms: FOB Fuxin, China | DDP available for qualified buyers
