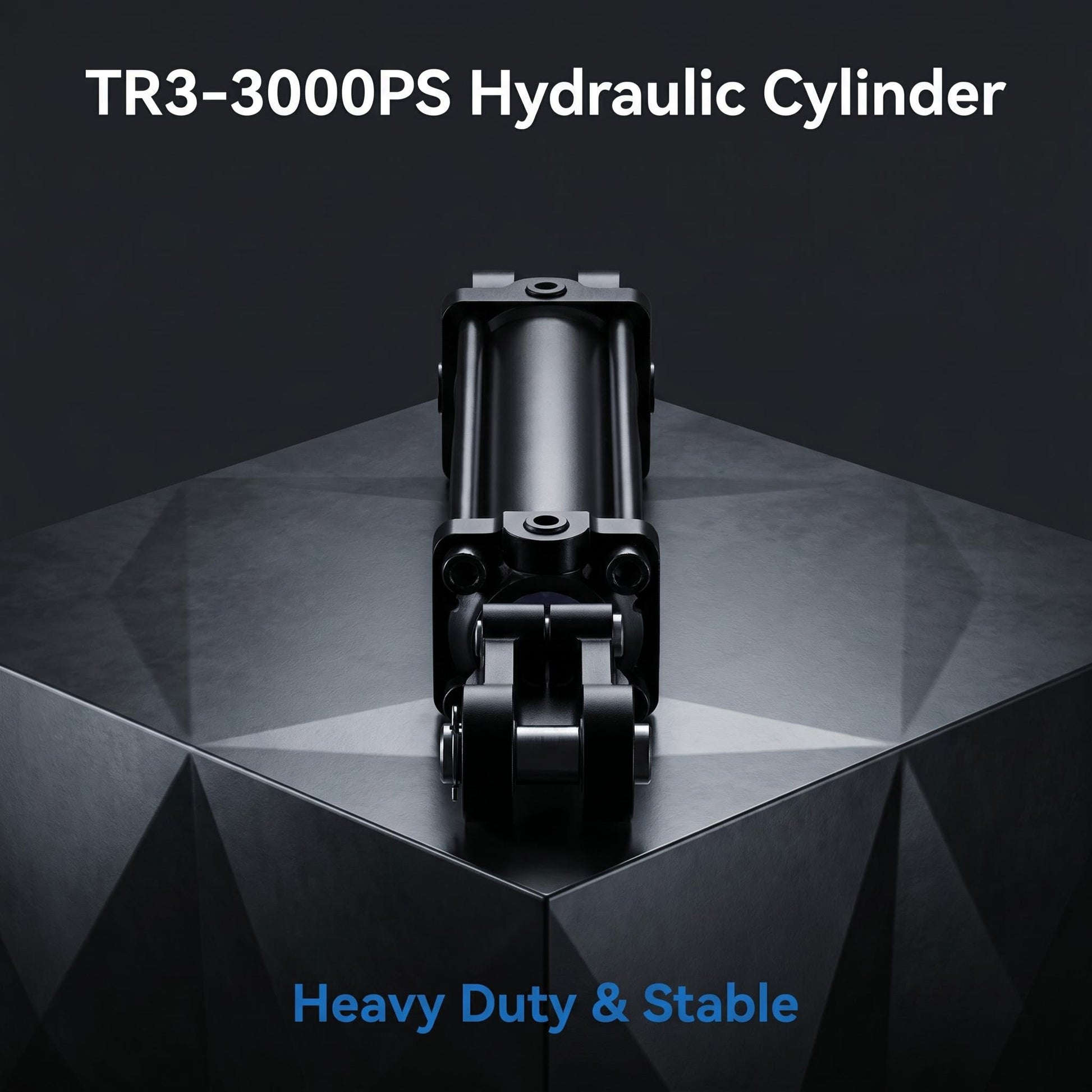

CTR3-2" | Custom Tie-Rod 3000PSI Hydraulic Cylinder | OEM Ready

CTR3-2" | Custom Tie-Rod 3000PSI Hydraulic Cylinder | OEM Ready

The CTR3-2" belongs to the CTR3 — Custom Tie-Rod 3000PSI series: a tie-rod body, double-acting hydraulic cylinder with a 2-inch (50.8 mm) bore, rated at 3,000 PSI (207 bar).

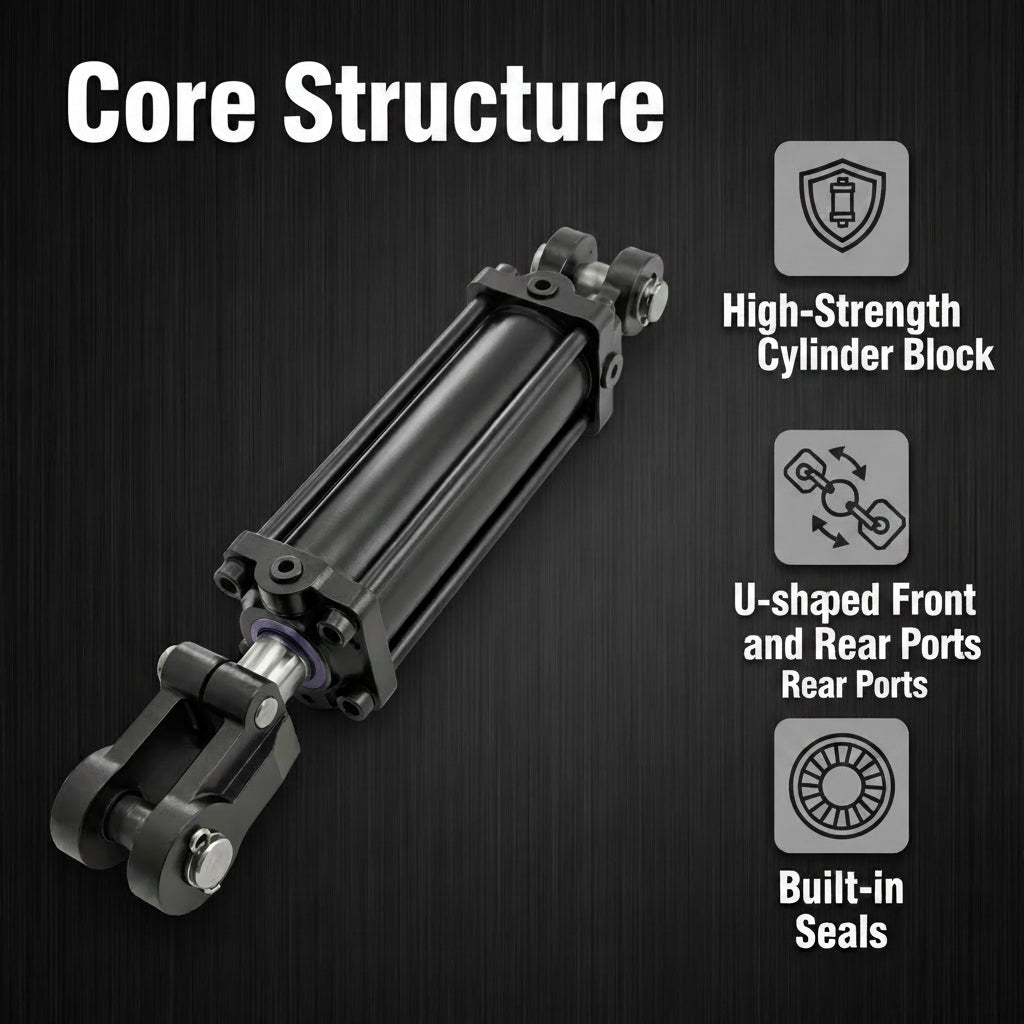

CTR3 = Custom Tie-Rod 3000PSI. Key features:

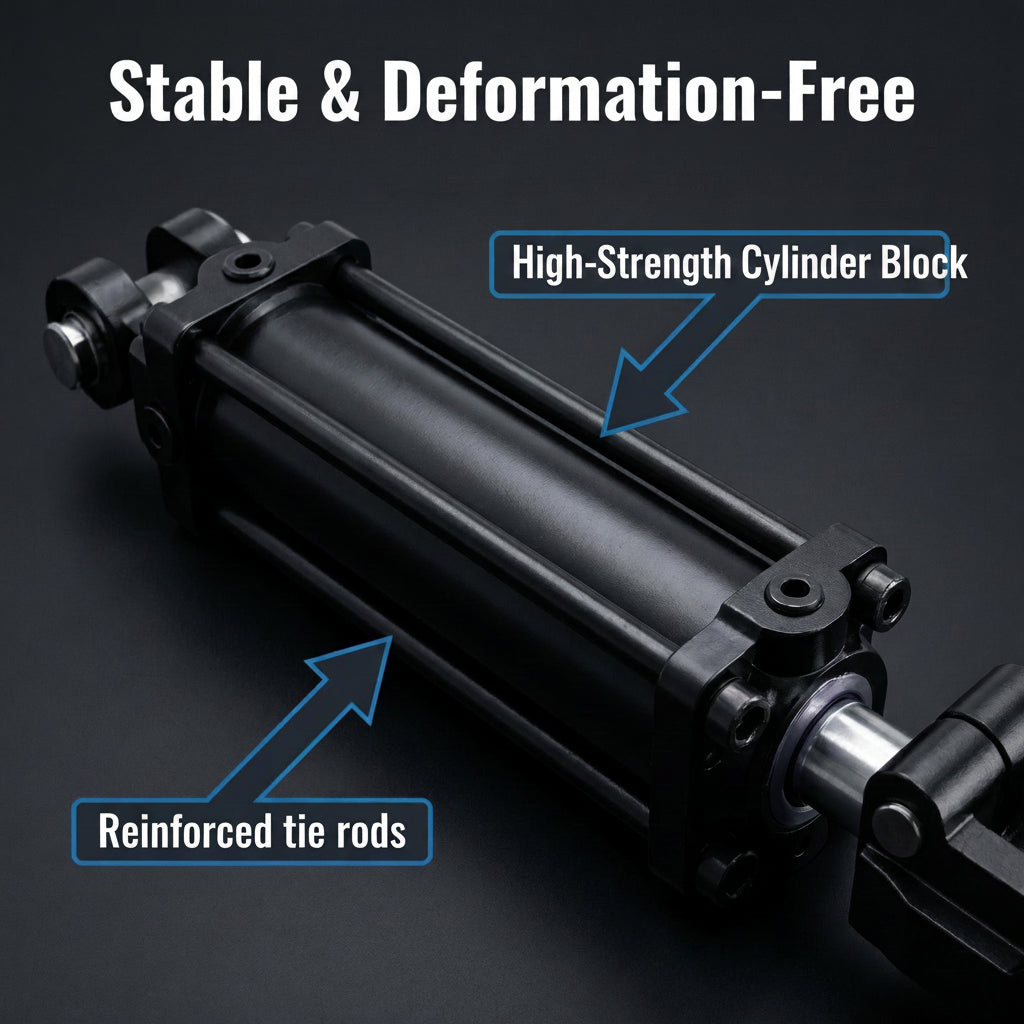

• Tie-rod construction: Both end caps secured by external tie rods, allowing complete field disassembly for seal replacement without special tools.
• Rear (cap end): Tie-rod rear connection.

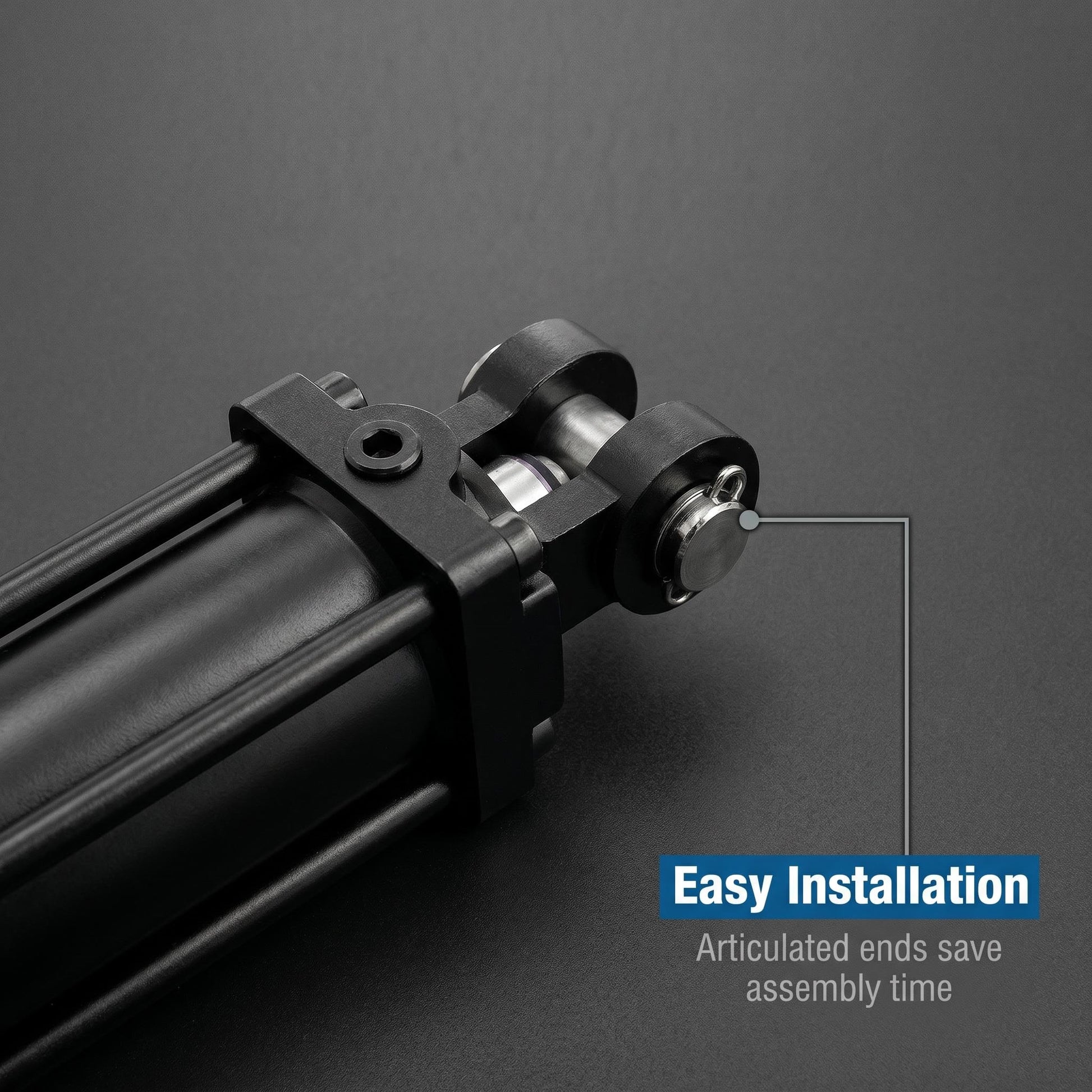

• Front (rod end): Double-lug front clevis — cast double-ear pivot connection on the piston rod.
• Threaded rod end: Externally threaded for adjustable front connection length.

Technical Specifications

• Series: CTR3 — Custom Tie-Rod 3000PSI
• Bore Diameter: 2 in (50.8 mm)
• Working Pressure: 3,000 PSI (207 bar)
• Action: Double-acting
• Body: Tie-rod construction (field-serviceable)
• Rear Connection: Tie-rod rear
• Front Connection: Double-lug front clevis + threaded rod end
• Origin: China | HS Code: 841221

CTR3 Series — Full Bore Range

• CTR3-2": 50.8 mm | CTR3-2.5": 63.5 mm | CTR3-3": 76.2 mm
• CTR3-3.5": 88.9 mm | CTR3-4": 101.6 mm | CTR3-5": 127 mm

CTR3 vs. CTR2.5: Choosing the Right Pressure Rating

• CTR2.5: 2,500 PSI — standard-duty, field-serviceable tie-rod construction
• CTR3: 3,000 PSI — heavy-duty, same field-serviceable tie-rod design with 20% higher pressure rating

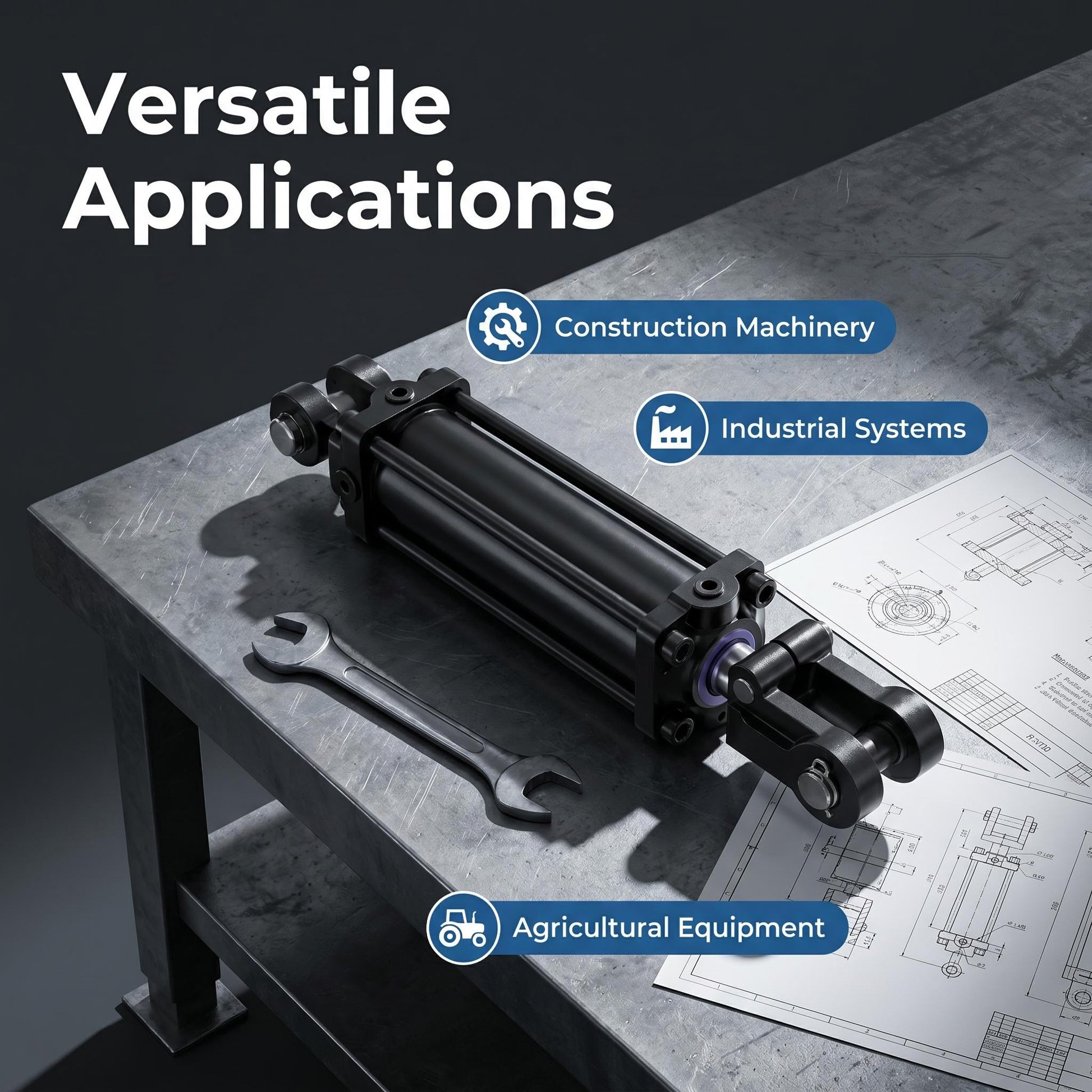

Applications

• Agricultural machinery: tractors, loaders, plows, balers
• Construction equipment and attachments
• Industrial presses and clamping systems
• Retrofit and replacement applications requiring field-serviceable cylinders
• Custom OEM hydraulic systems

FAQ

Q: What does CTR3 stand for?
A: CTR3 = Custom Tie-Rod 3000PSI. Tie-rod body with double-lug front clevis and threaded rod end.

Q: Can the CTR3 be serviced in the field?
A: Yes. The tie-rod construction allows complete disassembly for seal replacement without special tools.

Q: Is it double-acting?
A: Yes. All CTR3 cylinders are double-acting.

Q: What are the shipping terms?
A: FOB. Shipping costs, duties, and clearance fees are the buyer's responsibility.

Why Choose CTR3-2" for OEM?

• Tie-rod construction — field-serviceable, easy seal replacement
• Double-lug front clevis — stable two-surface pivot at rod end
• 3,000 PSI rated — heavy-duty performance
• Double-acting — full hydraulic control both directions
• Full OEM/ODM support | Volume pricing available

Manufactured by Customized Hydraulic Co., Ltd — CHC/Custom hydraulic cylinder OEM specialists serving the US, Canada, UK, and EU markets.

📋 Need a custom bore, stroke, or mounting? Submit a Quote Request →

📄 Product Spec Sheet: Coming soon — contact us for full technical documentation.

OEM & Bulk Order Information

• Quality Certification: ISO 9001 Certified — CUSTOM Hydraulic Machinery Co., Ltd (Wuxi, China)
• Manufacturer: CUSTOM Hydraulic Machinery Co., Ltd (Fuxin, China)
• MOQ: 1 unit (sample order) | 10 units minimum per bore size (bulk)
• Lead Time: 7–15 business days (standard) | Rush orders available upon request
• Custom Options: Bore diameter, stroke length, port size, rod diameter & mounting style — all customizable for OEM requirements
• OEM/ODM: Private label & custom branding available
• Shipping Terms: FOB Fuxin, China | DDP available for qualified buyers
