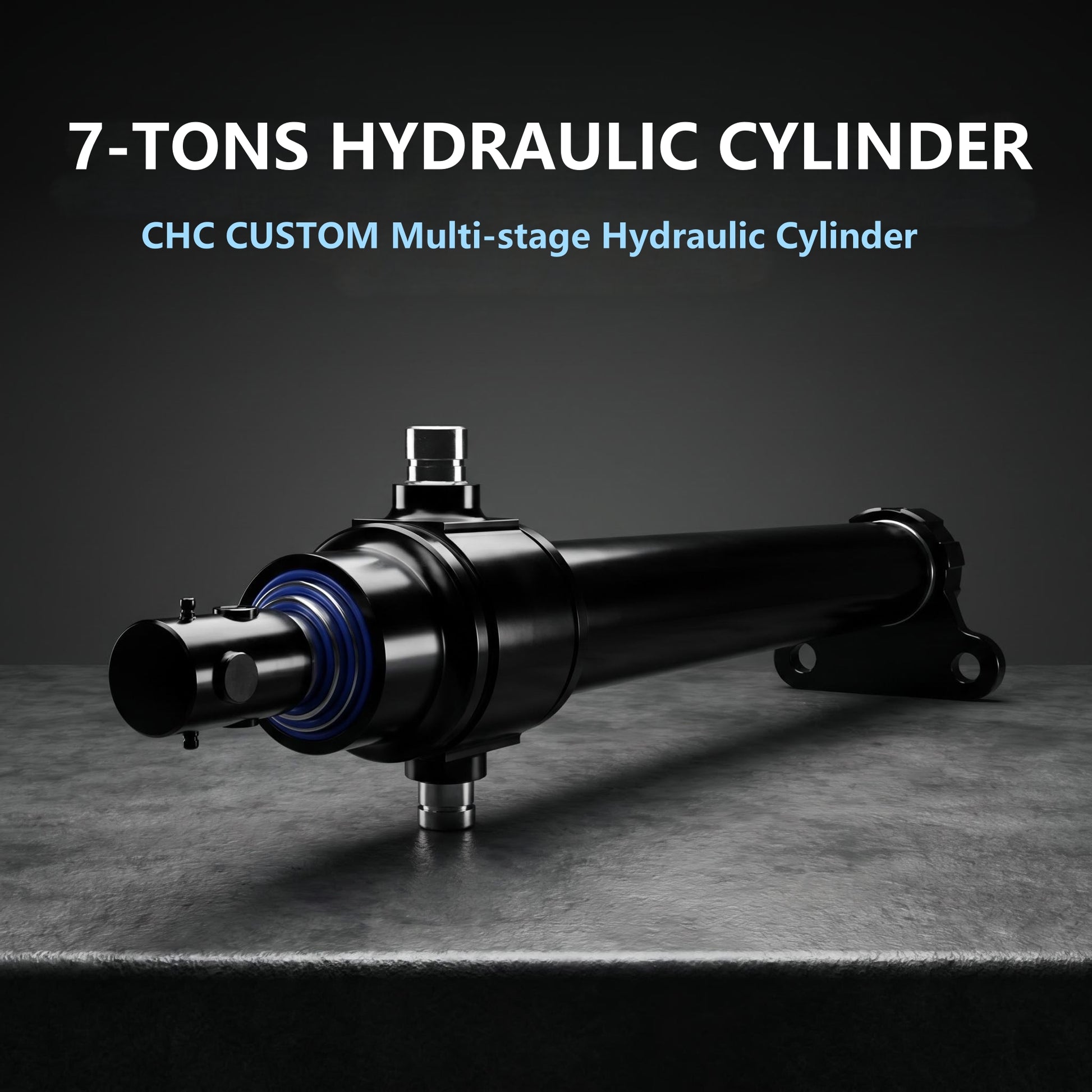

CTC-7TONS Multi-Stage Inverted Telescopic Hydraulic Cylinder

CTC-7TONS Multi-Stage Inverted Telescopic Hydraulic Cylinder

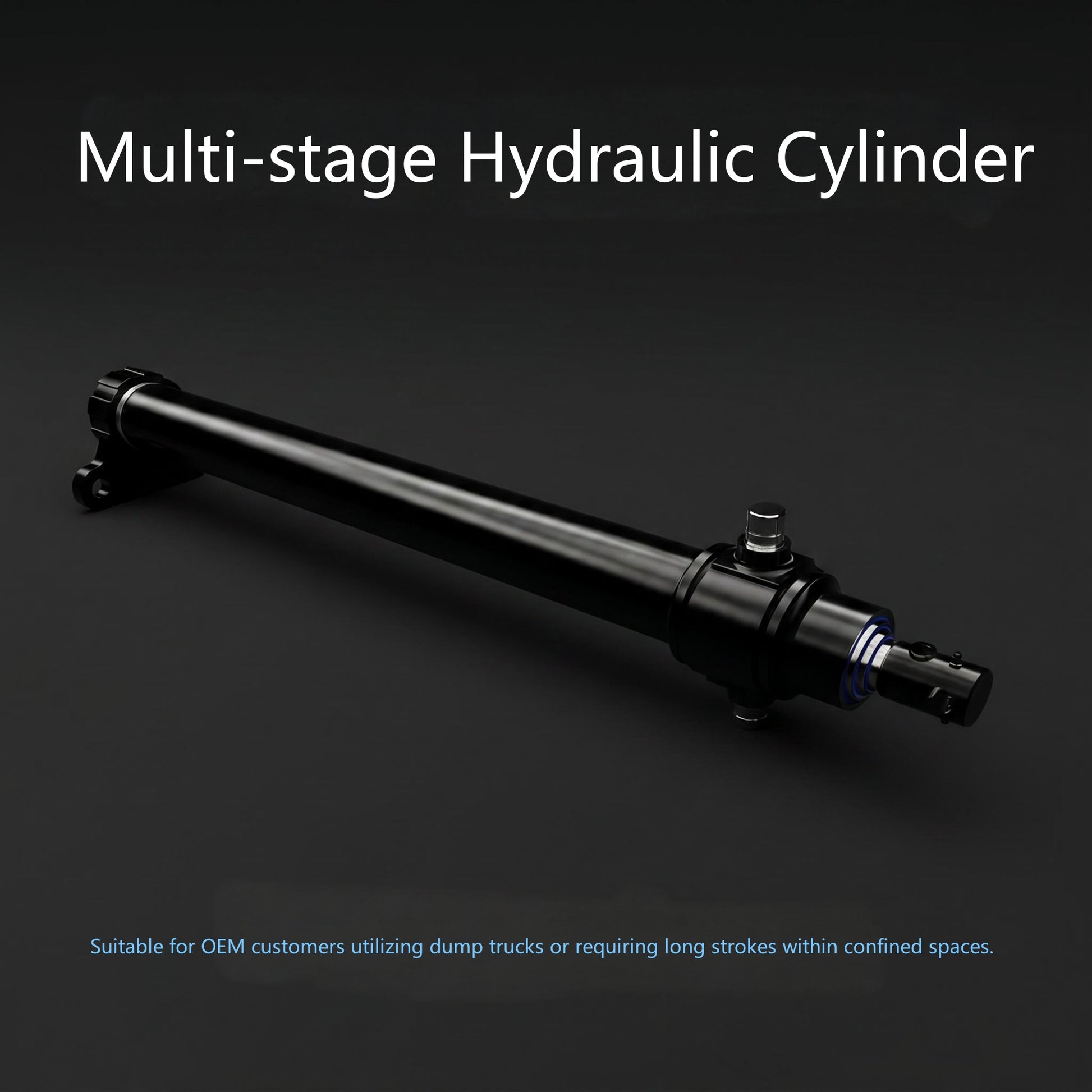

The CTC-7TONS is a multi-stage inverted telescopic hydraulic cylinder with a 3.75-inch (95.25 mm) bore diameter, rated at 2,100 PSI (145 bar) working pressure, and a 7-ton (6,350 kg) load capacity. It is manufactured by Customized Hydraulic Co., Ltd and ships from China (HS Code: 841221). Three stroke configurations are available: CTC-7T-07833, CTC-7T-09833, and CTC-7T-10833.

Technical Specifications

• Bore Diameter: 3.75 in (95.25 mm)
• Working Pressure: 2,100 PSI (145 bar)
• Load Capacity: 7 tons (6,350 kg)
• Cylinder Type: Multi-Stage Inverted Telescopic (single-acting)
• Available Models: CTC-7T-07833 | CTC-7T-09833 | CTC-7T-10833
• Weight Range: 43.01 – 51.08 kg (by model)
• Country of Origin: China
• HS Code: 841221
• OEM/ODM: Custom stroke, port, and mounting available

What Is a Multi-Stage Inverted Telescopic Hydraulic Cylinder?

A multi-stage inverted telescopic hydraulic cylinder mounts base-up (inverted), allowing the stages to extend downward. This design achieves a long working stroke from a compact retracted length, making it ideal for space-constrained installations such as dump truck bodies and tipping trailers. The CTC-7TONS uses sequential stage extension to deliver consistent 7-ton force output throughout the full stroke.

Applications

• Dump trucks and tipping trailers
• Agricultural tipping and grain trailers
• Refuse and waste collection vehicles
• Construction lifting and hoist systems
• Custom OEM hydraulic systems requiring compact retracted length

Frequently Asked Questions

Q: What is the maximum working pressure of the CTC-7TONS?
A: The CTC-7TONS is rated at 2,100 PSI (145 bar) maximum working pressure.

Q: What bore size does the CTC-7TONS use?
A: The bore diameter is 3.75 inches (95.25 mm).

Q: How many stages does this telescopic cylinder have?
A: The CTC-7TONS is a multi-stage cylinder. The exact number of stages varies by stroke model (07833, 09833, 10833). Contact us for stage count details per model.

Q: What is the difference between CTC-7T-07833, CTC-7T-09833, and CTC-7T-10833?
A: The suffix numbers indicate the stroke length. 07833 has the shortest stroke, 10833 has the longest. All share the same 3.75" bore and 2,100 PSI rating.

Q: Is the CTC-7TONS compatible with dump trucks?
A: Yes. The inverted telescopic design is specifically suited for dump truck and tipping trailer applications where a long stroke is needed from a short retracted length.

Q: Can I order a custom stroke or port configuration?
A: Yes. OEM and ODM customization is available for stroke length, hydraulic port size, and mounting style. Contact our engineering team for a quote.

Q: What is the shipping term?
A: All orders ship FOB. Shipping costs, import duties, customs clearance, and inspection fees are the buyer's responsibility and are confirmed after order placement.

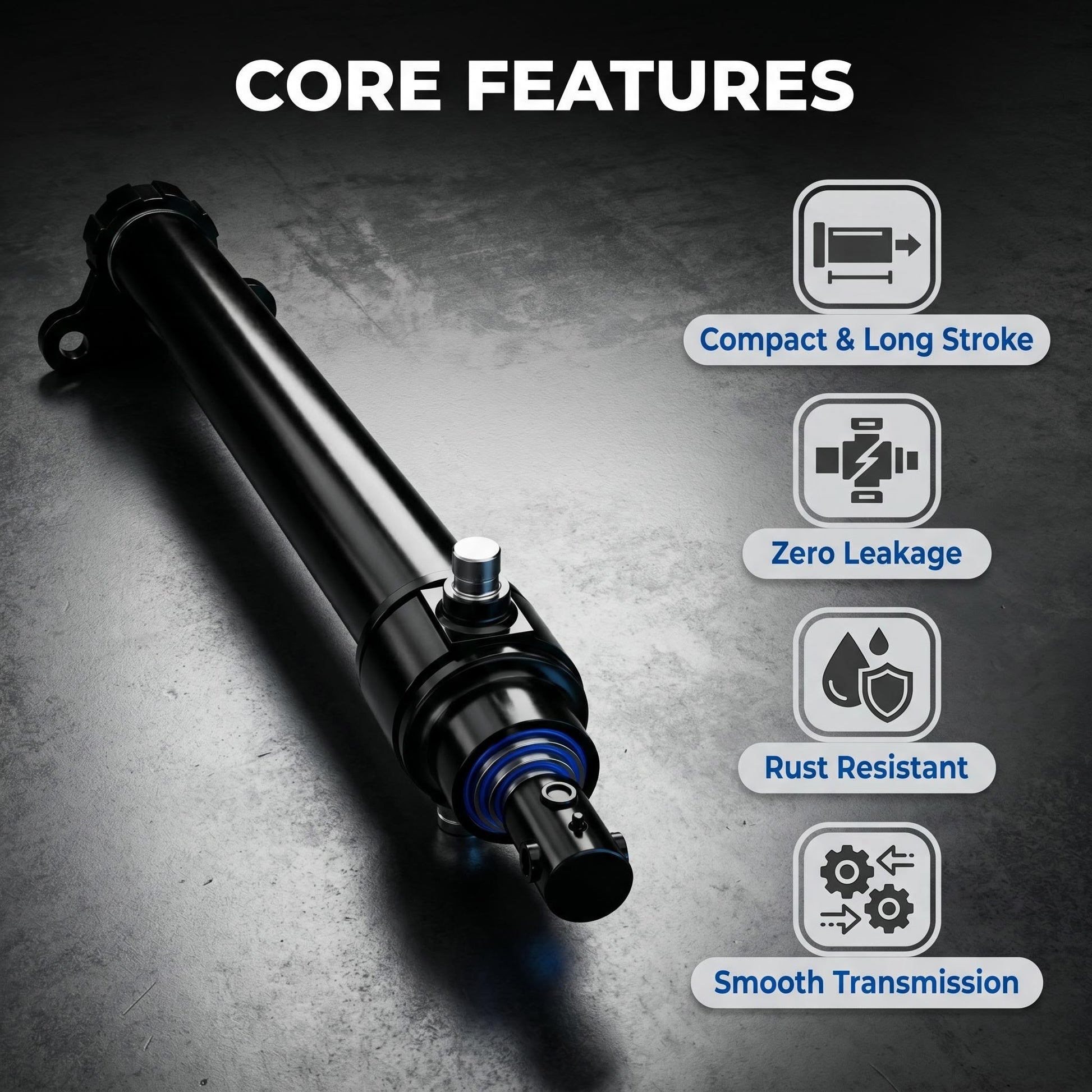

Why Choose the CTC-7TONS?

• Inverted mounting design saves vertical space in tight chassis installations
• Multi-stage extension delivers long stroke from a short collapsed length
• 2,100 PSI rated for reliable performance in heavy-duty cycles

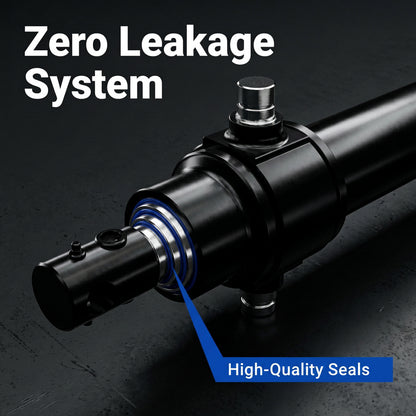

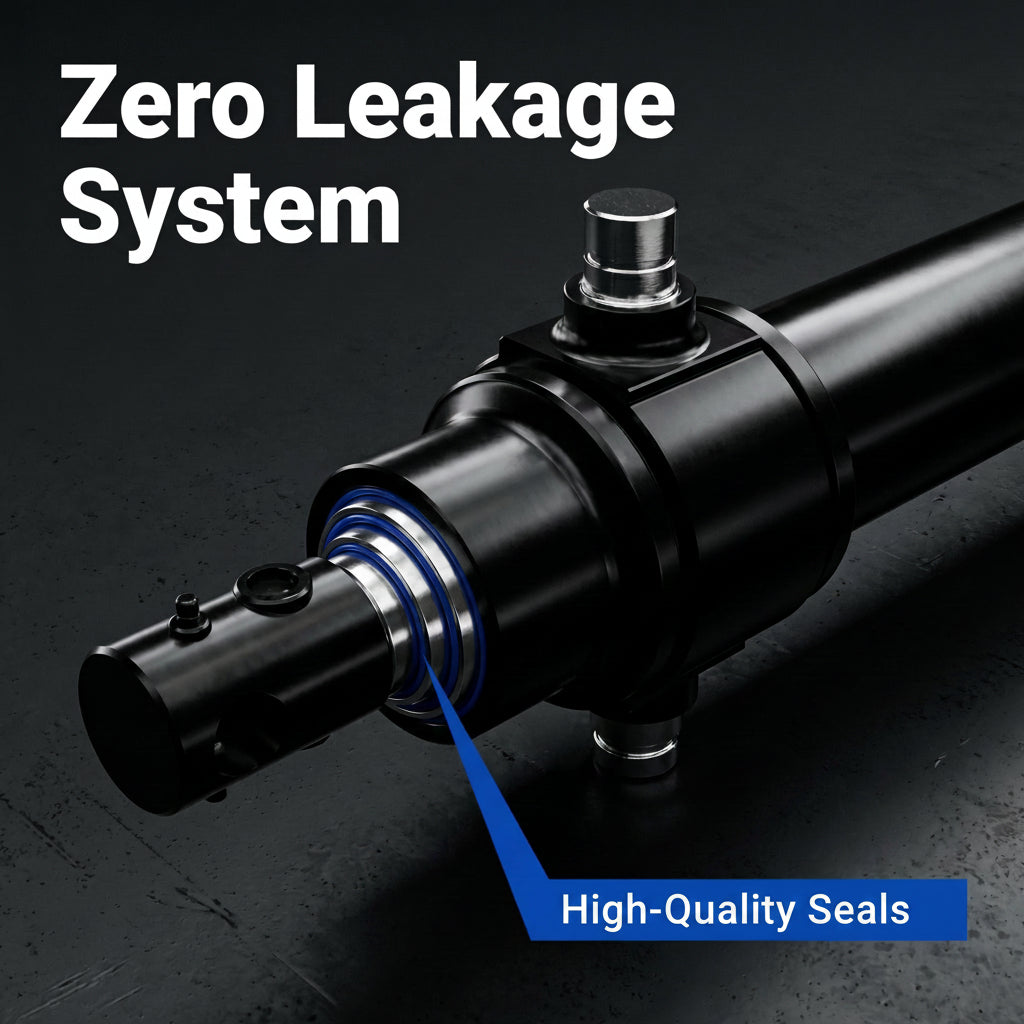

• Precision-machined seals ensure smooth stage-by-stage extension and long service life
• Full OEM/ODM support with engineering consultation from spec to delivery
• Volume pricing available for bulk and fleet orders

Manufactured by Customized Hydraulic Co., Ltd — industrial hydraulic cylinder specialists serving the US, Canada, UK, and EU markets.

📋 Need a custom bore, stroke, or mounting? Submit a Quote Request →

OEM & Bulk Order Information

• Quality Certification: ISO 9001 Certified — CUSTOM Hydraulic Machinery Co., Ltd (Wuxi, China)
• Manufacturer: CUSTOM Hydraulic Machinery Co., Ltd (Fuxin, China)
• MOQ: 1 unit (sample order) | 10 units minimum per bore size (bulk)
• Lead Time: 7–15 business days (standard) | Rush orders available upon request
• Custom Options: Bore diameter, stroke length, port size, rod diameter & mounting style — all customizable for OEM requirements
• OEM/ODM: Private label & custom branding available
• Shipping Terms: FOB Fuxin, China | DDP available for qualified buyers
